FeCrAl 255 Alloy Strip Aluchrom-O Bright For Resistor Capacitor

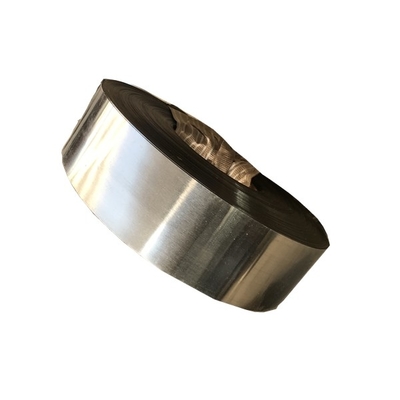

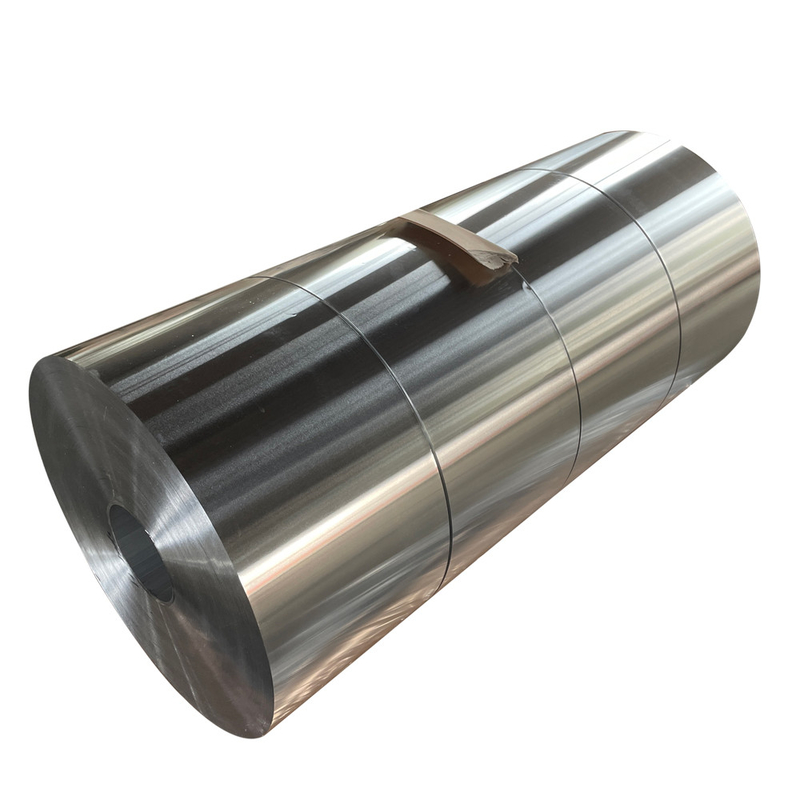

Gambar besar : FeCrAl 255 Alloy Strip Aluchrom-O Bright For Resistor Capacitor Harga terbaik

Detail produk:

Place of Origin:	China
Nama merek:	Ohmalloy
Sertifikasi:	CE
Model Number:	Ohmalloy142

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	5kg
Harga:	USD 5.12
Packaging Details:	spool
Delivery Time:	within 7 days after payment
Payment Terms:	L/C, T/T,
Supply Ability:	2000KG/WEEK

Kontak

Detil Deskripsi produk

Application:	Heating,Industry,furnace heating wire	Shape:	wire
Material:	FeCrAl	Chemical composition:	Fe Cr Al
Dimensions:	0.9mm	Surface:	Bright and soft

FeCrAl 255 Alloy Strip Aluchrom-O Bright For Resistor Capacitor

OhmAlloy142B:

Common Name: 0Cr25Al5, Aluchrom, OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for OhmAlloy142B are used in electric ceramic cooktop, industrial furnace, heaters.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06	0.025	0.025	0.70	Max 0.60	23.0~26.0	Max 0.60	4.5~6.5	Bal.	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
500	700	23

Typical Physical properties

Density (g/cm3)	7.10
Electrical resistivity at 20℃(Ωmm2/m)	1.42
Conductivity coefficient at 20℃ (WmK)	13

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃	15

Specific heat capacity
Temperature	20℃
J/gK	0.46

Melting point (℃)	1500
Max continuous operating temperature in air (℃)	1250
Magnetic properties	non-magnetic

Temperature Factor of Electrical Resistivity

20℃	100℃	200℃	300℃	400℃	500℃	700℃	800℃	900℃	1000℃	1100℃	1200℃	1300℃
1	1.002	1.005	1.008	1.013	1.021	1.038	1.040	1.042	1.044	1.046	1.047

Style of supply

Alloys Name	Type	Dimension
OhmAlloy142BW	Wire	D=0.03mm~8mm
OhmAlloy142BR	Ribbon	W=0.4~40	T=0.03~2.9mm
OhmAlloy142BS	Strip	W=8~250mm	T=0.1~3.0
OhmAlloy142BF	Foil	W=6~120mm	T=0.003~0.1
OhmAlloy142BB	Bar	Dia=8~100mm	L=50~1000
