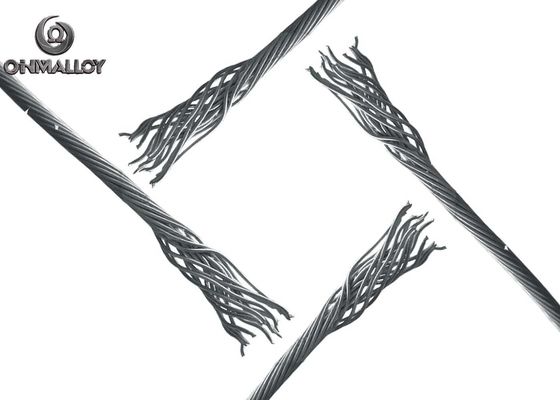

Ultra Flexible Pure Nickel Stranded Wire, Nickel 200 (N6), 0.25mm/49 Strands for Battery Cables & Heating Elements

Gambar besar : Ultra Flexible Pure Nickel Stranded Wire, Nickel 200 (N6), 0.25mm/49 Strands for Battery Cables & Heating Elements Harga terbaik

Detail produk:

Tempat asal:	jiangshu
Nama merek:	Ohmalloy/OEM
Sertifikasi:	CCC,ROHS
Nomor model:	SP-ohmalloy109(19)

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500 Meter
Kemasan rincian:	Spool, kertas dibungkus, karton luar
Waktu pengiriman:	3-7 Hari Kerja Setelah Pembayaran
Syarat-syarat pembayaran:	L/C, T/T, MoneyGram,
Menyediakan kemampuan:	2 Ton per bulan

Kontak

Detil Deskripsi produk

Nama:	19 Strands Heating Nichrome Wire Alloy Cr20Ni80 Komponen Generasi Panas	Ukuran:	0.61mm*19
Suhu Kerja Maks (℃)::	1200	Opsi material:	NiCr80/20, NiCr60/15, Nikel 212, NiMn2, CuNi44
Diameter luar:	2.6-2.9mm	Aplikasi:	Komponen Pembangkit Panas
Opsi Resistensi:	0,023-0,29 ohm/meter	Jumlah untaian:	19 atau 37 untaian
Menyoroti:	pure nickel stranded wire for battery cables , nickel 200 heating element wire , 0.25mm 49 strand nickel wire

Ultra Flexible Pure Nickel Stranded Wire, Nickel 200 (N6), 0.25mm/49 Strands for Battery Cables & Heating Elements

Stranded Resistance Heating Wire Recognizing the need for more precisely controlled stranded wire within the heat treatment industry and working closely with our cable customers, OHMALLOY has developed a range of stranded resistance wire in FeCrAl, NiCr, NiMn and Pure Nickel. These alloys possess the optimum properties for high performance at elevated temperature and in other adverse conditions where reliability and quality is of the paramount consideration.

Size: 0.61mm*19  500m/spool

Specification

Alloy	Norminal composition%					Resistivity	Max Temp
Alloy	Ni	Cr	Fe	Al	Mn	(Ωmm2/m)	℃
NiCr80/20	80	20				1.09	1200
NiCr60/15	60	16	Bal			1.11	1150
OCr23Al5		22	Bal	4.8		1.35	1300
OCr20Al5		22	Bal	5.3		1.39	1300
Pure Nickel	99.6					0.09
NiMn2	98				2	0.11

Standard stranding size

Alloy	Norminal OD	No of strands	King wire size	Resistance	Length
Alloy	mm		mm	Ω/m	m/kg
NiCr80/20	2.7	19*0.523	0.574	0.285	29
NiCr60/15	2.76	19*0.523	0.574	0.29	30
NiCr80/20	2.76	37*0.385	0.45	0.279	28
Nickel	2.87	19*0.574	0.574	0.0198	21
NiMn2	2.87	19*0.574	0.71	0.0234	22
Nickel	3.0	19*0.6	0.7	0.0128	18.5

* Other size stranding wire dimension and configuration can be supplied based on client's special request.

Ultra Flexible Pure Nickel Stranded Wire, Nickel 200 (N6), 0.25mm/49 Strands for Battery Cables & Heating Elements 0

Production Procedure

Ultra Flexible Pure Nickel Stranded Wire, Nickel 200 (N6), 0.25mm/49 Strands for Battery Cables & Heating Elements 1

3.Package Reference

4.Products and Services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;

Ultra Flexible Pure Nickel Stranded Wire, Nickel 200 (N6), 0.25mm/49 Strands for Battery Cables & Heating Elements 3

5.Question and Answer

Q1:How can I contact with your company?

A1:We have multiple communication channels : Tel/Whatsapp/Wechat:+86-15826530281 QQ:3199874404(SPARROW)

Q2:Do you provide free samples?

A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.

Q3:What is your payment terms?

A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,,Paypal is OK.

Q4:What is your lead time?

A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.
